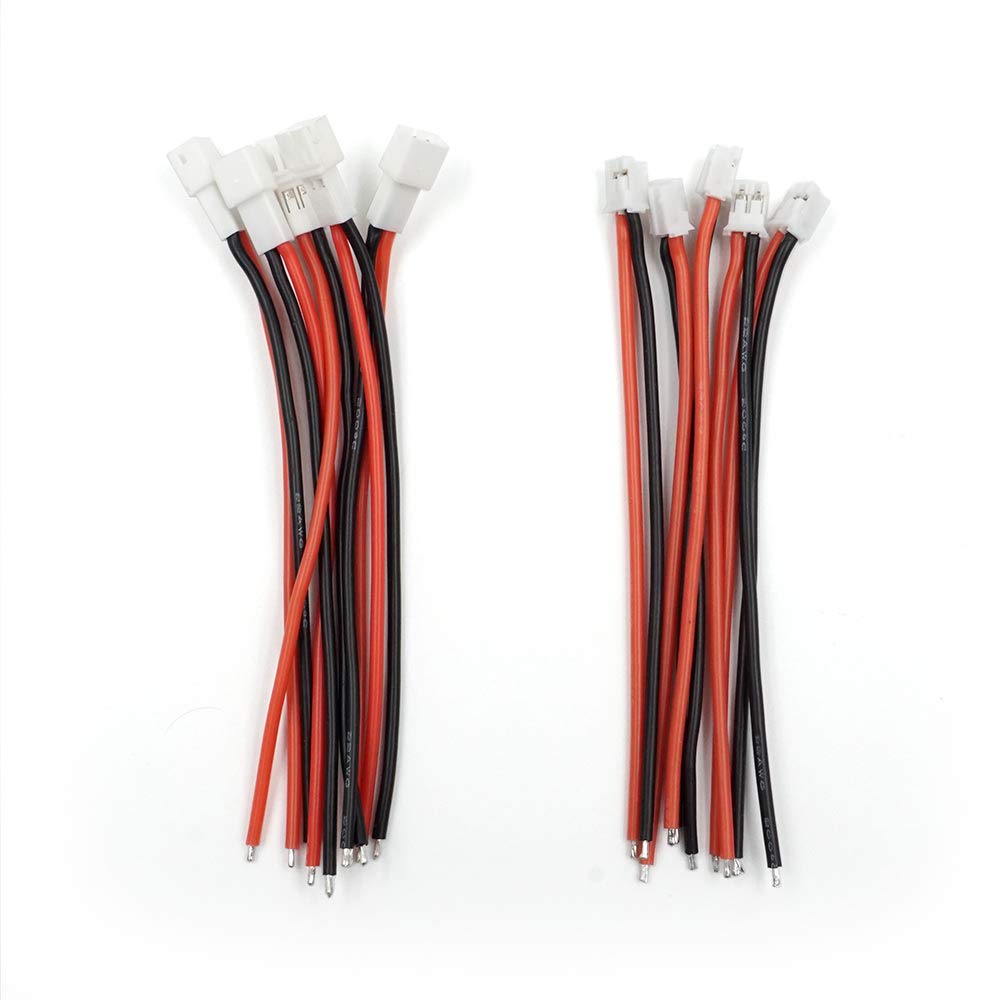

JST PH2.0mm Male and Female Connector Cable
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
产品详情
Product Overview
JST PH2.0mm connector cable is a standardized interconnect solution for wire-to-board and wire-to-wire applications. I incorporates crimp-style termination technology, industry-standard pitch dimensions, and rigorous manufacturing controls. It addresses space constraints, current carrying requirements, and environmental sealing needs across applications.
Core Features
- Standardized Interconnect Design: Implements industry-recognized pitch dimensions, ensuring cross-compatibility with standard mating connectors and PCB footprints.
- Secure Locking Mechanism: Positive retention prevents accidental disconnection under vibration, thermal cycling, and mechanical stress.
- Wide Current & Voltage Range:Supports varying current capacities from signal-level transmission to power applications.
- Space-Efficient Form Factor: Compact housing profiles enable high-density interconnection solutions where space is constrained.
- Consistent Electrical Performance: Precision-stamped contacts maintain stable contact resistance and signal integrity across temperature extremes and repeated mating cycles.
- Flexible Configuration Options:Supports multiple wire gauge combinations and core counts for customization.
Material & Specifications
Technical Specifications Table
| Parameter | Standard Values | Available Options |
| Conductor Material | Tinned Oxygen-Free Copper (OFC) | Bare Copper, Silver-Plated Copper |
| Insulation Material | PVC (Polyvinyl Chloride) | XLPE, TPE, Nylon, FEP |
| Standard Pitch | PH 2.0mm (Default/Standard), 2.5mm (XH Series) | 0.8mm, 1.0mm, 1.5mm, 3.0mm, 3.96mm |
| Standard Wire Gauge | 22 AWG, 24 AWG, 26 AWG | 16 AWG, 18 AWG, 20 AWG, 28 AWG, 30 AWG |
| Standard Core Count | 2P, 3P, 4P, 5P, 6P | 7P, 8P, 10P, 12P, 14P, 16P, 20P |
| Operating Temperature | -25°C to +85°C | -40°C to +105°C, -40°C to +125°C |
| Contact Resistance | ≤10mΩ (Initial) | ≤20mΩ (After Environmental Testing) |
| Insulation Resistance | ≥1000MΩ | – |
| Withstanding Voltage | 1500V AC/1 minute | – |
| Current Rating | 3A (22 AWG) | 5A (18 AWG), 1A (26 AWG) |
| Voltage Rating | 250V AC/DC | 125V AC/DC, 300V AC/DC |
| Mating Cycles | ≥50 cycles | – |
Full Customization Options
Cable Construction Customization
JST PH2.0mm connector cable configurable with custom conductor stranding, insulation thickness, and jacket materials. Shielded JST PH2.0mm connector cable available with foil, braid, or combination shielding for EMI-sensitive applications.
Connector Configuration
JST PH2.0mm connector cable supports custom pin assignments, polarized housing orientations, and mixed series configurations. Single-row and dual-row arrangements available.
Length & Termination
Custom cable lengths from 50mm to 5000mm available. JST PH2.0mm connector cable supplied with connectors on one end, both ends, or mixed connector types.
Color & Marking
Custom insulation color coding, wire identification markers, and labeling options available for JST PH2.0mm connector cable assemblies.
Special Environmental Modifications
JST PH2.0mm connector cable can be modified with conformal coating, potting, or overmolding. High-temperature and low-temperature material options available.
Application Scenarios
IoT & Embedded Systemse space-efficient design supports miniaturized device form factors.
- Consumer Electronics
- Industrial Automation & Control
- Automotive Electronics
- Medical Devices
- LED Lighting & Power Systems
